Sony never released a “PS3 Pro,” but what if they had? Zac Builds explored that alternate timeline by engineering a water-cooled, overclocked variant that pushes a carefully selected CECH2501B model to its absolute limits. Through precision engineering, advanced materials, and custom firmware, this modified console achieves what Sony left on the table: locked 60fps in Gran Turismo 6 and dramatically smoother performance across PlayStation 3’s library.
The whole project started from a simple observation: modern hardware comes aggressively tuned from the factory, leaving maybe 3-10% performance on the table if you’re lucky. Back in the day, you could squeeze 20-30% more out of your gear just by swapping thermal paste and cranking some voltage sliders. The PS3 sits in this sweet spot where it’s old enough to have thermal headroom but modern enough to benefit from contemporary cooling solutions. Zac picked the CECH2501B specifically because it’s the Goldilocks model: efficient 45nm CPU and 40nm GPU that sip about 50% less power than launch units, but crucially, still hackable. Later super slim models locked down the security, making them overclock-proof.
Designer: Zac Builds

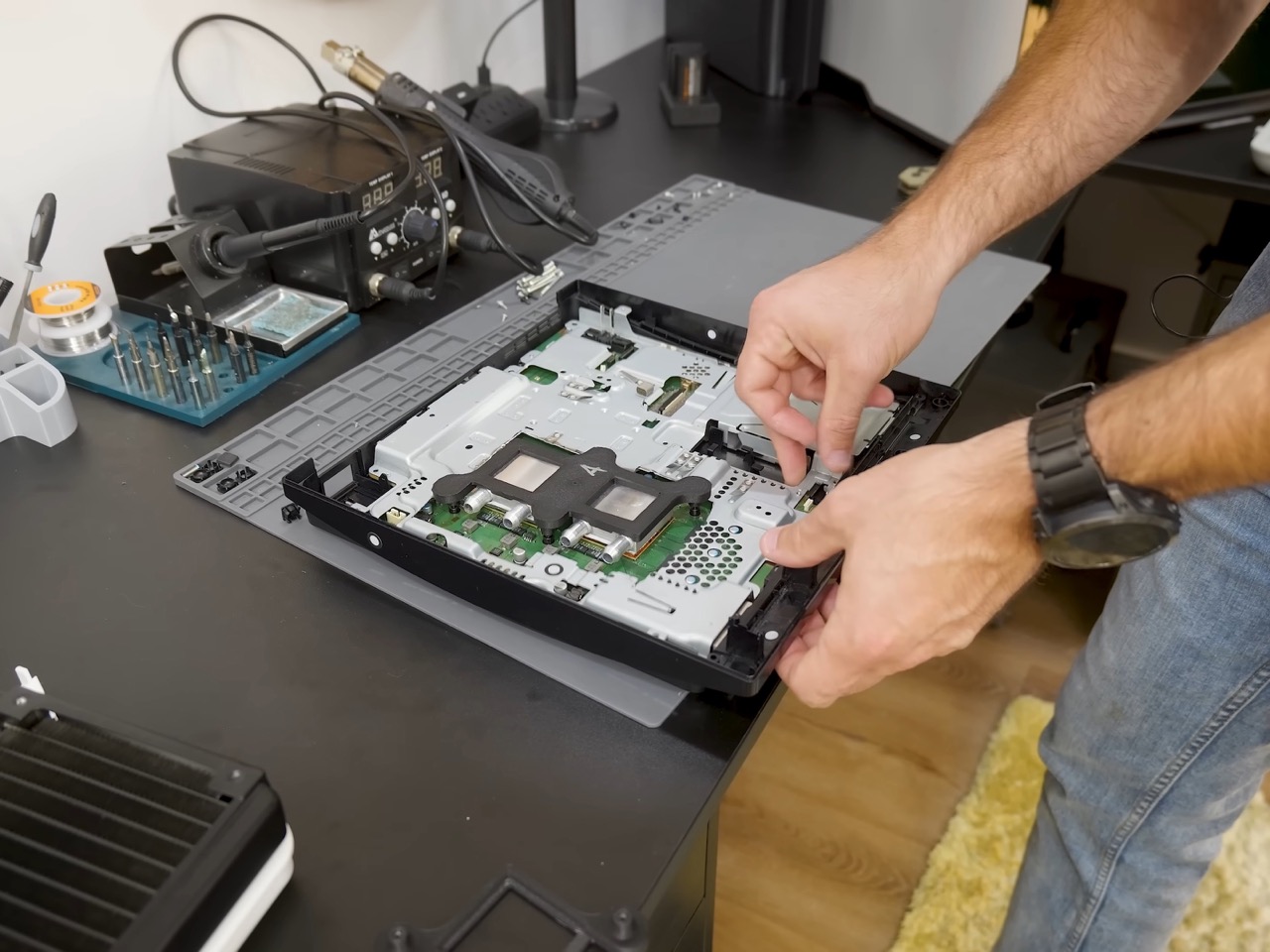

The tear-down revealed exactly why every PS3 owner should be nervous. Those integrated heat spreaders covering the CPU and GPU use thermal interface material that dries out over time, turning your console into a space heater. The GPU’s spreader was literally glued down, requiring hot air and steady nerves to pry off without destroying the chip. The CPU spreader used a silicone ring that needed careful knife work to remove. One wrong move and you’ve got an expensive paperweight. Once Zac got them off, he installed PTM7950, which looks like boring gray plastic but melts into an extremely effective thermal compound under heat. High-temp RTV silicone sealed everything back up, giving a flexible, heat-resistant bond that should outlast the console itself.

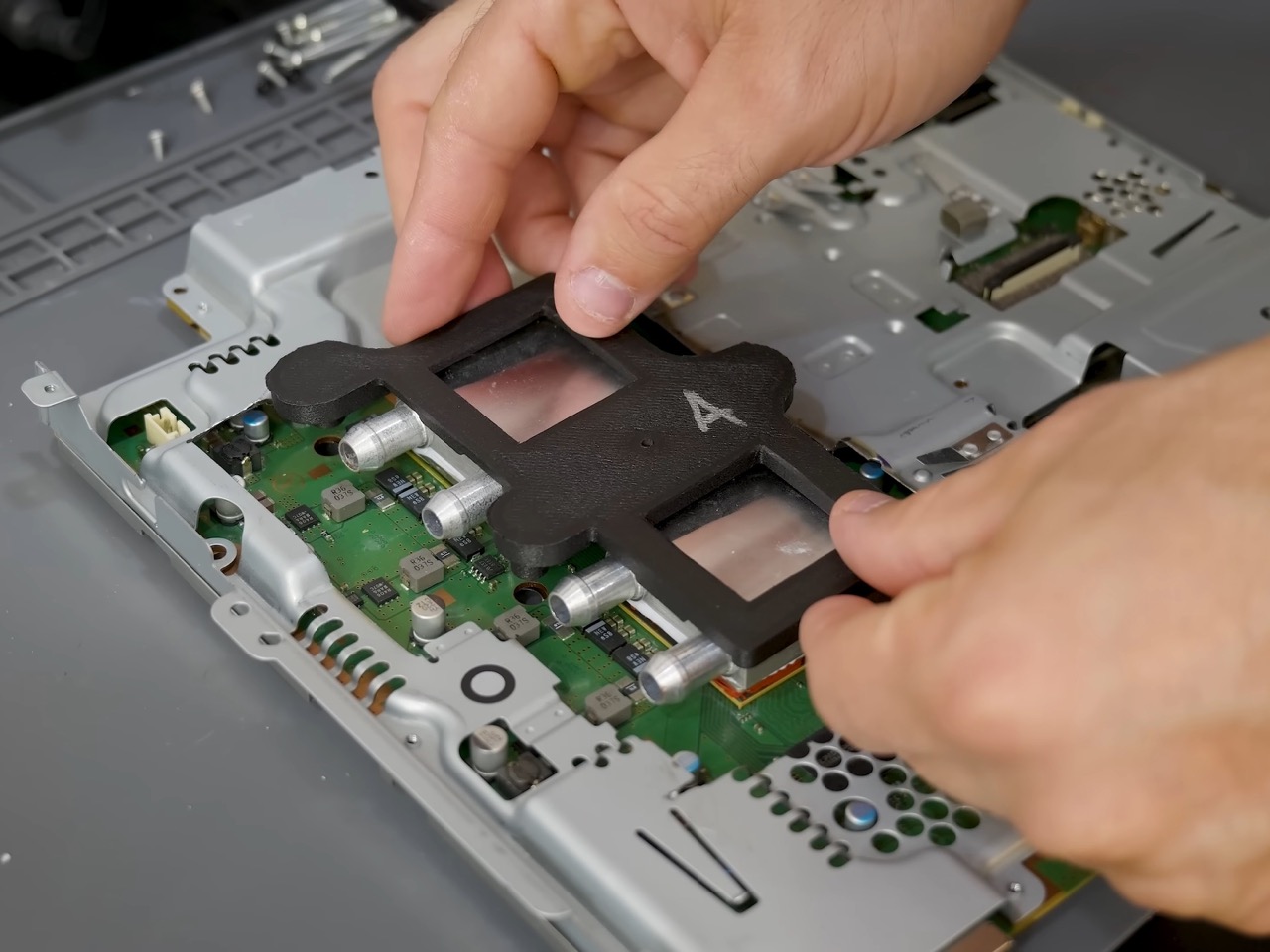

Here’s where things get interesting from a design perspective. The PS3’s CPU and GPU sit at different heights, which killed the idea of a single unified water block. Zac machined two separate aluminum blocks and had to figure out how to mount them with proper pressure while fitting everything inside the original chassis. He used 3D scanning tech accurate to the width of a human hair to create digital replicas of the motherboard, then designed custom mounting hardware in CAD. The BambuLab P2S cranked out parts in carbon fiber reinforced nylon for the water block mounts, which then got annealed at 85°C for 24+ hours. That annealing step matters because without it, nylon parts slowly warp under heat and pressure, losing mounting tension over time. The result was parts that tested 20-30% stiffer and far more dimensionally stable.

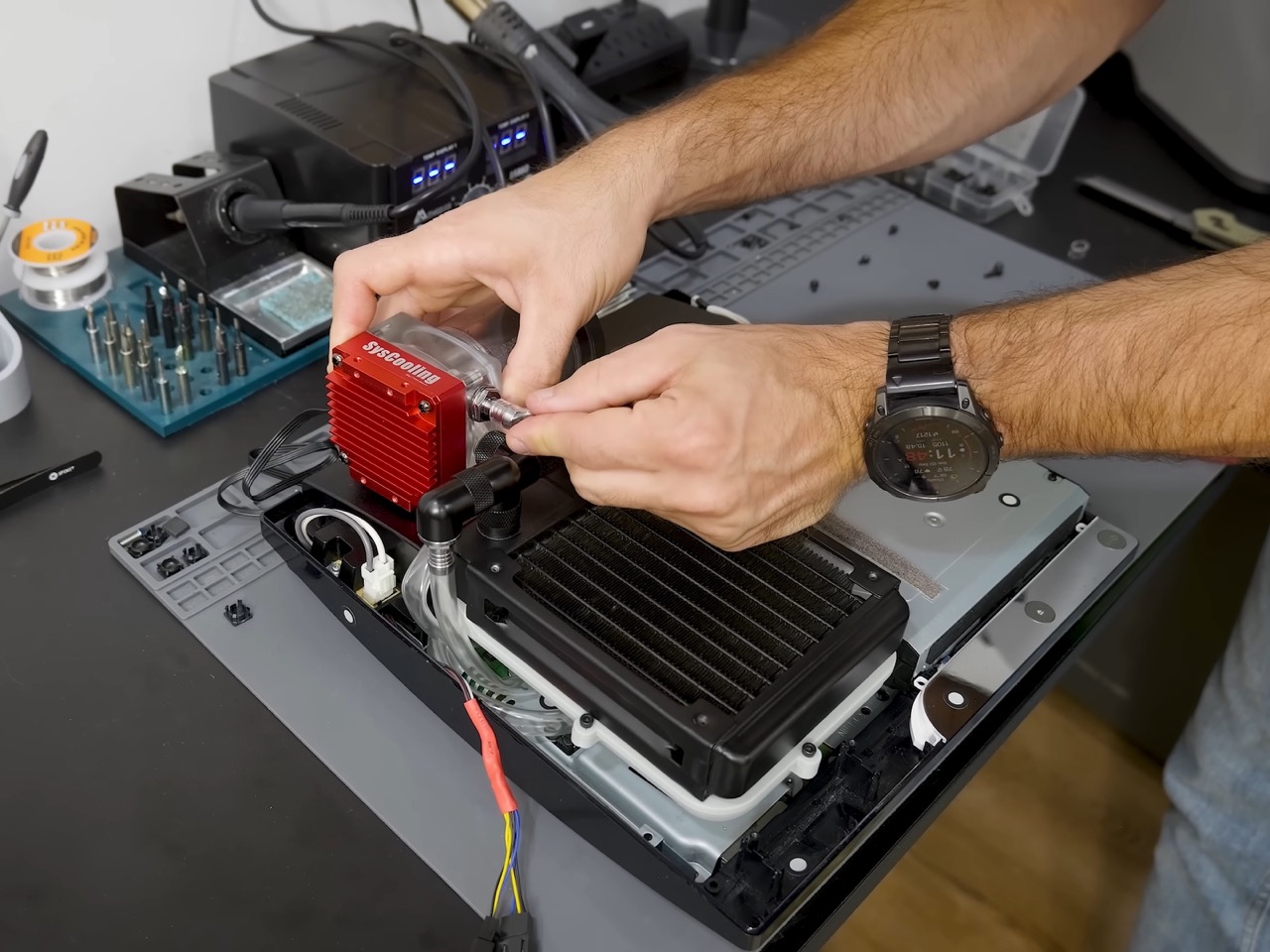

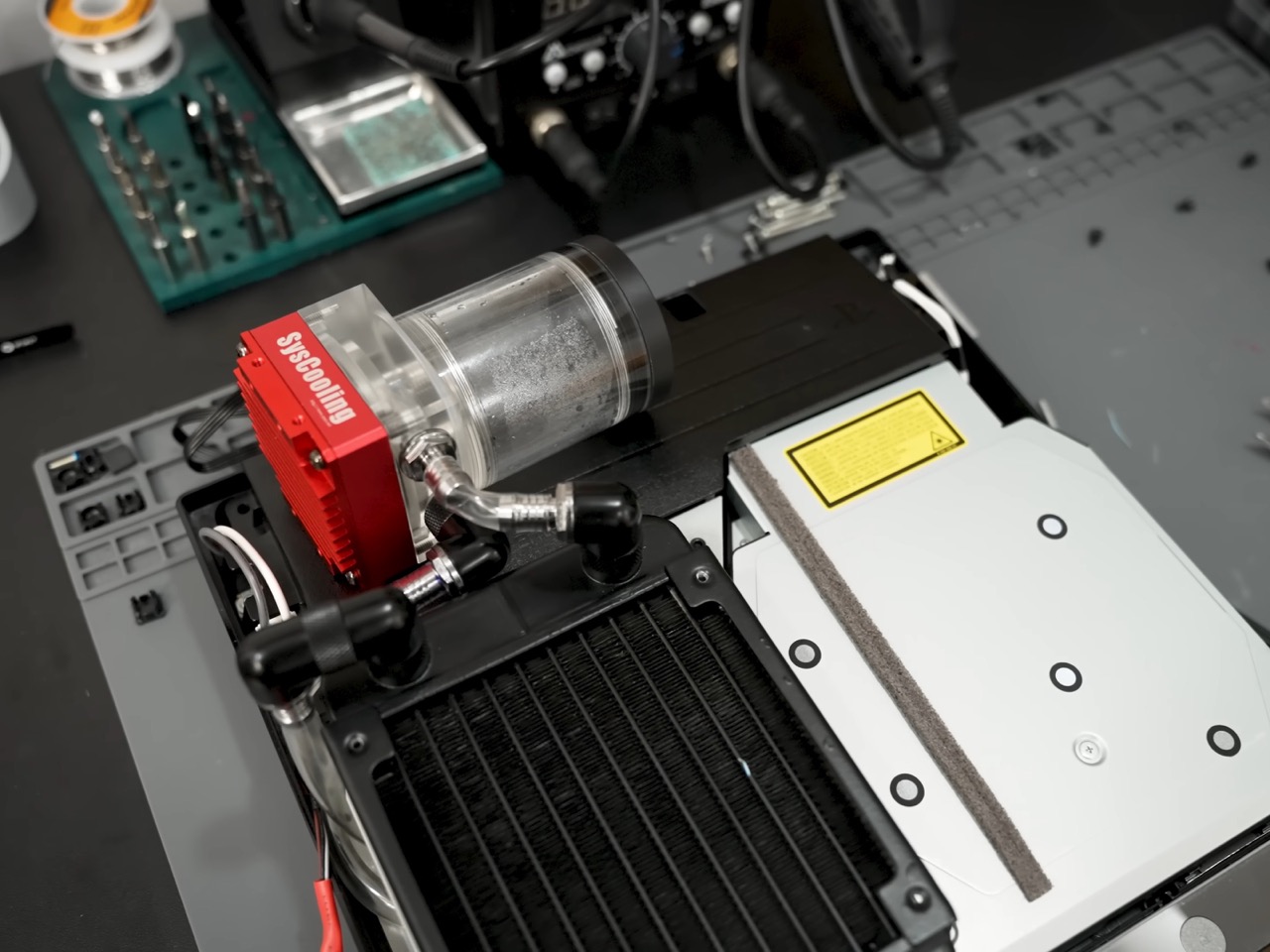

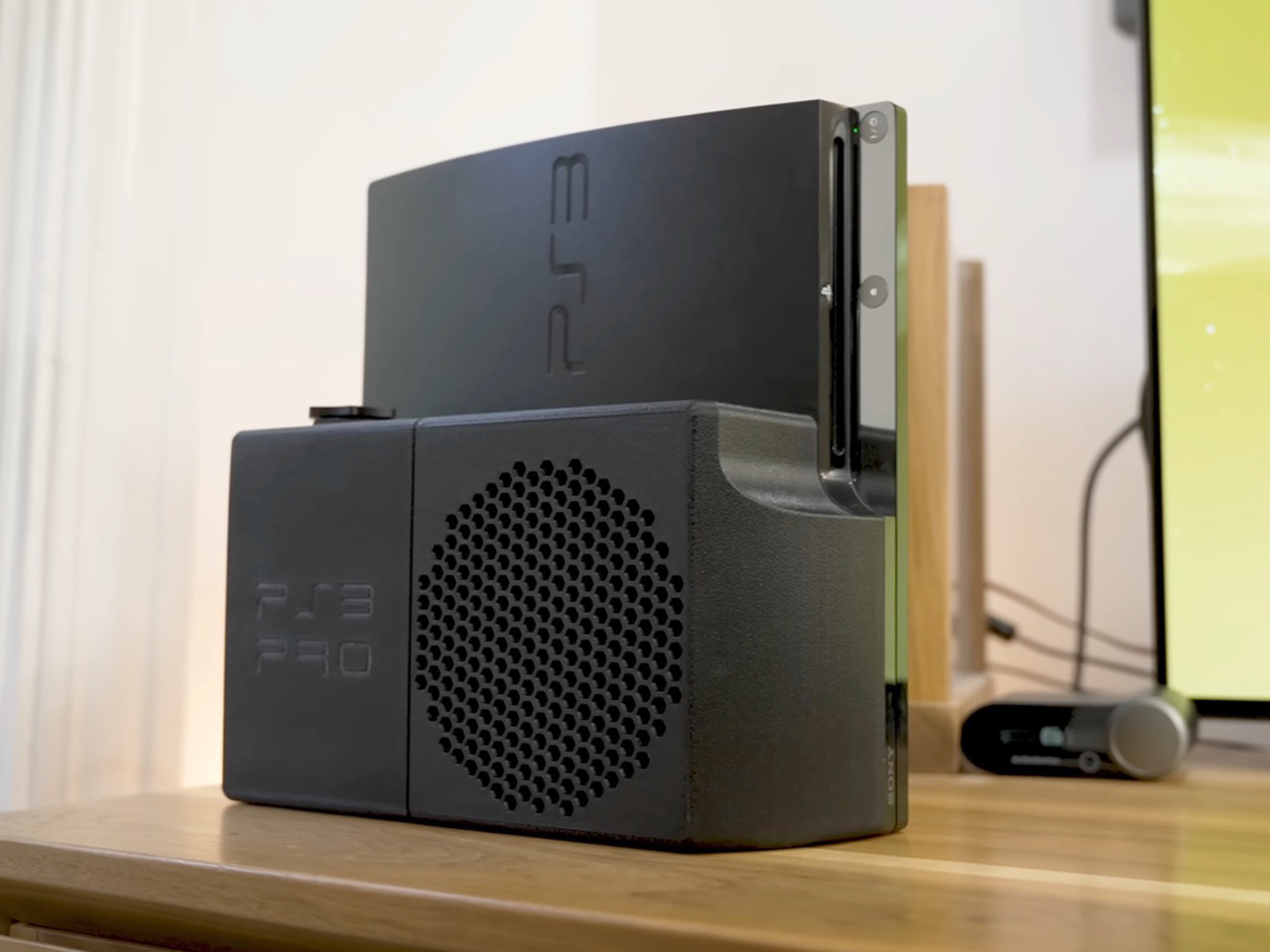

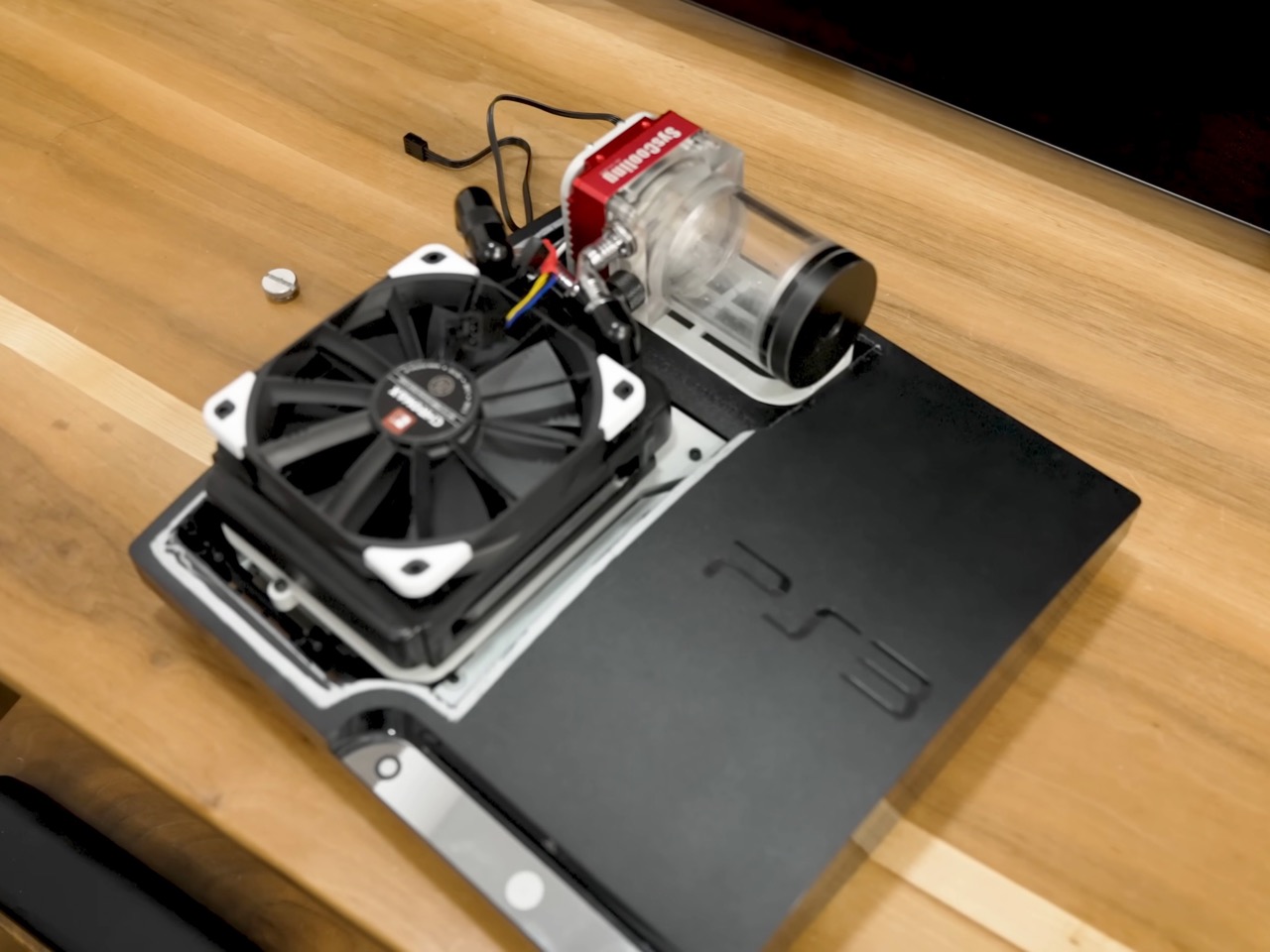

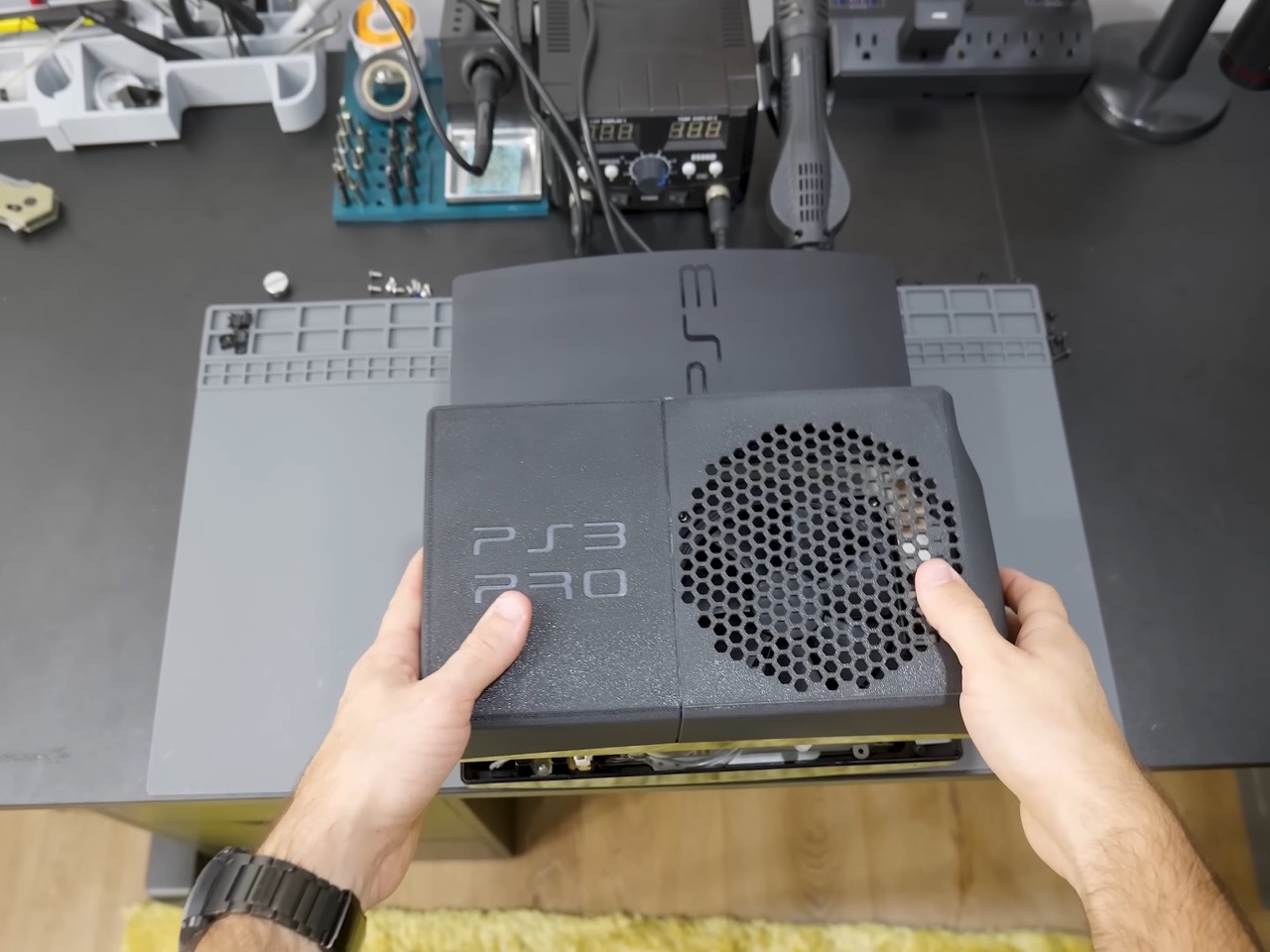

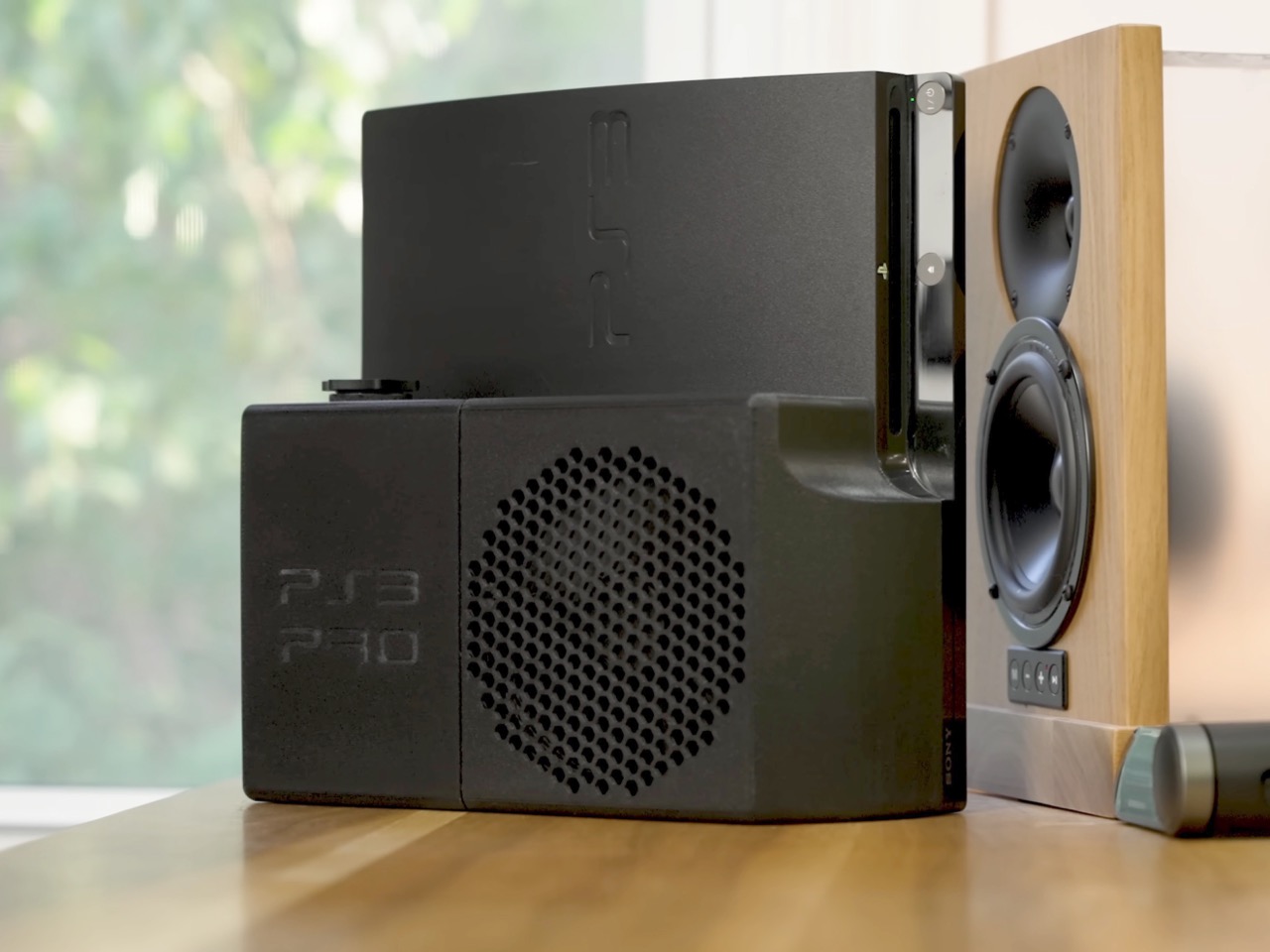

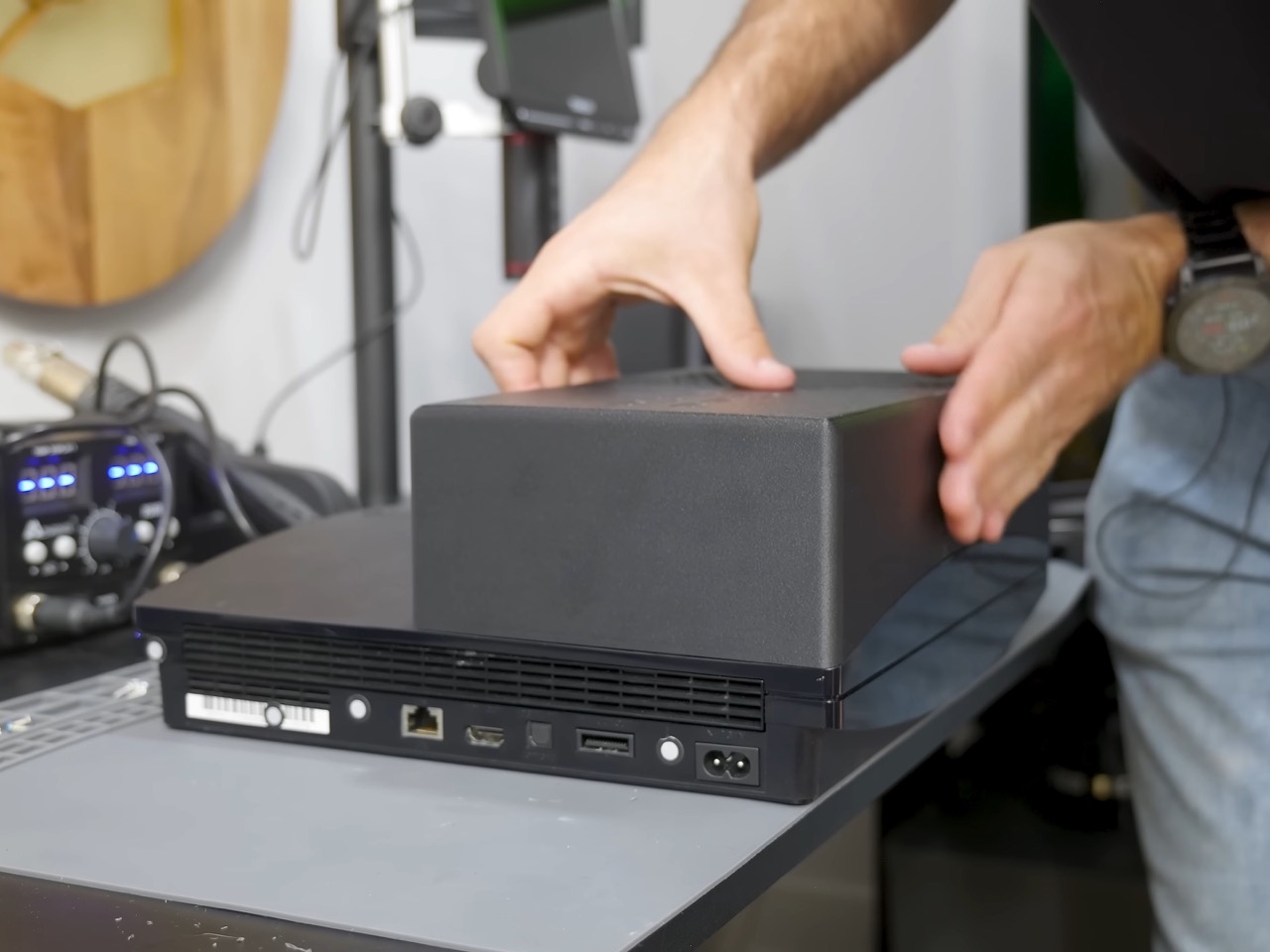

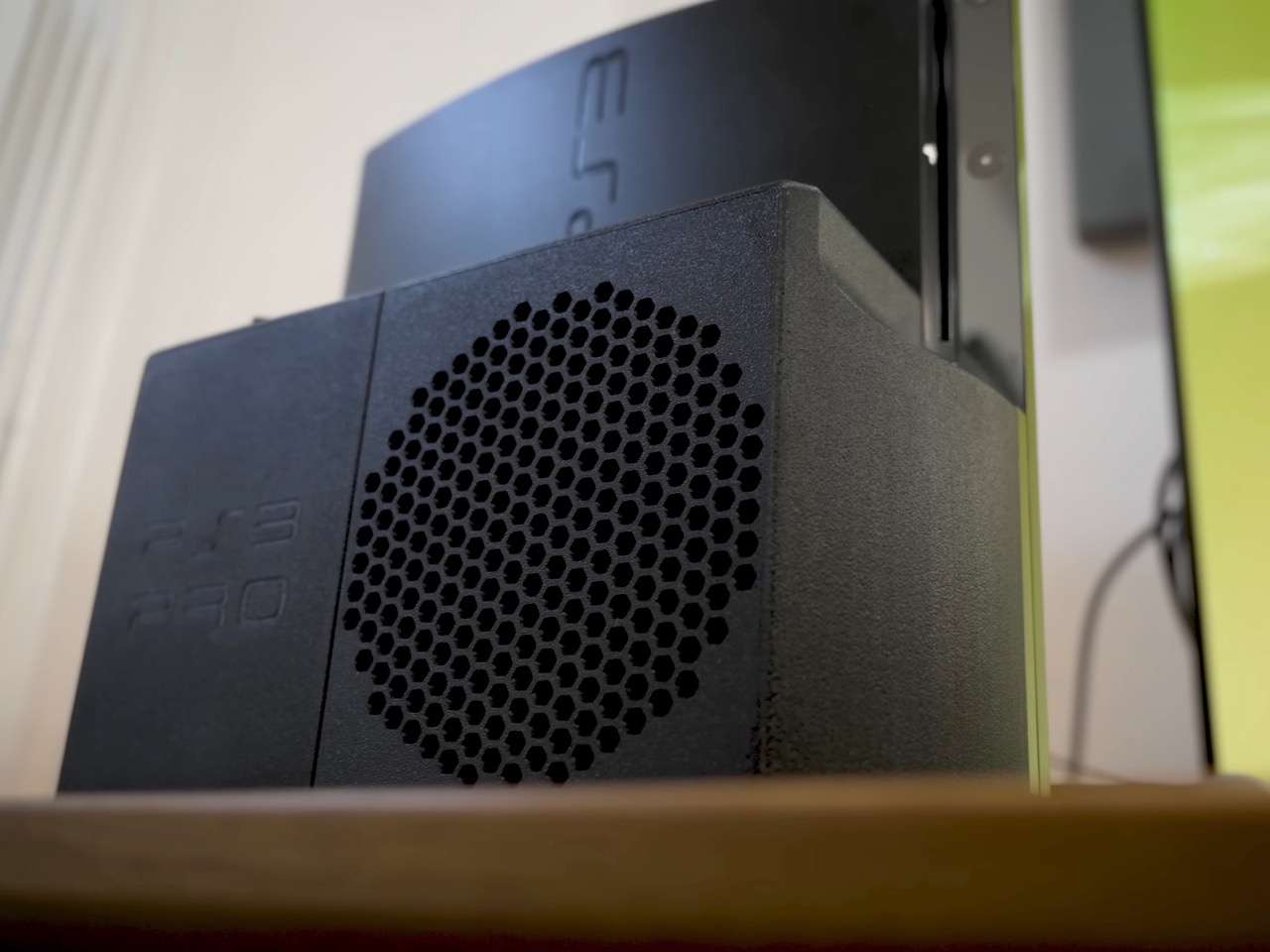

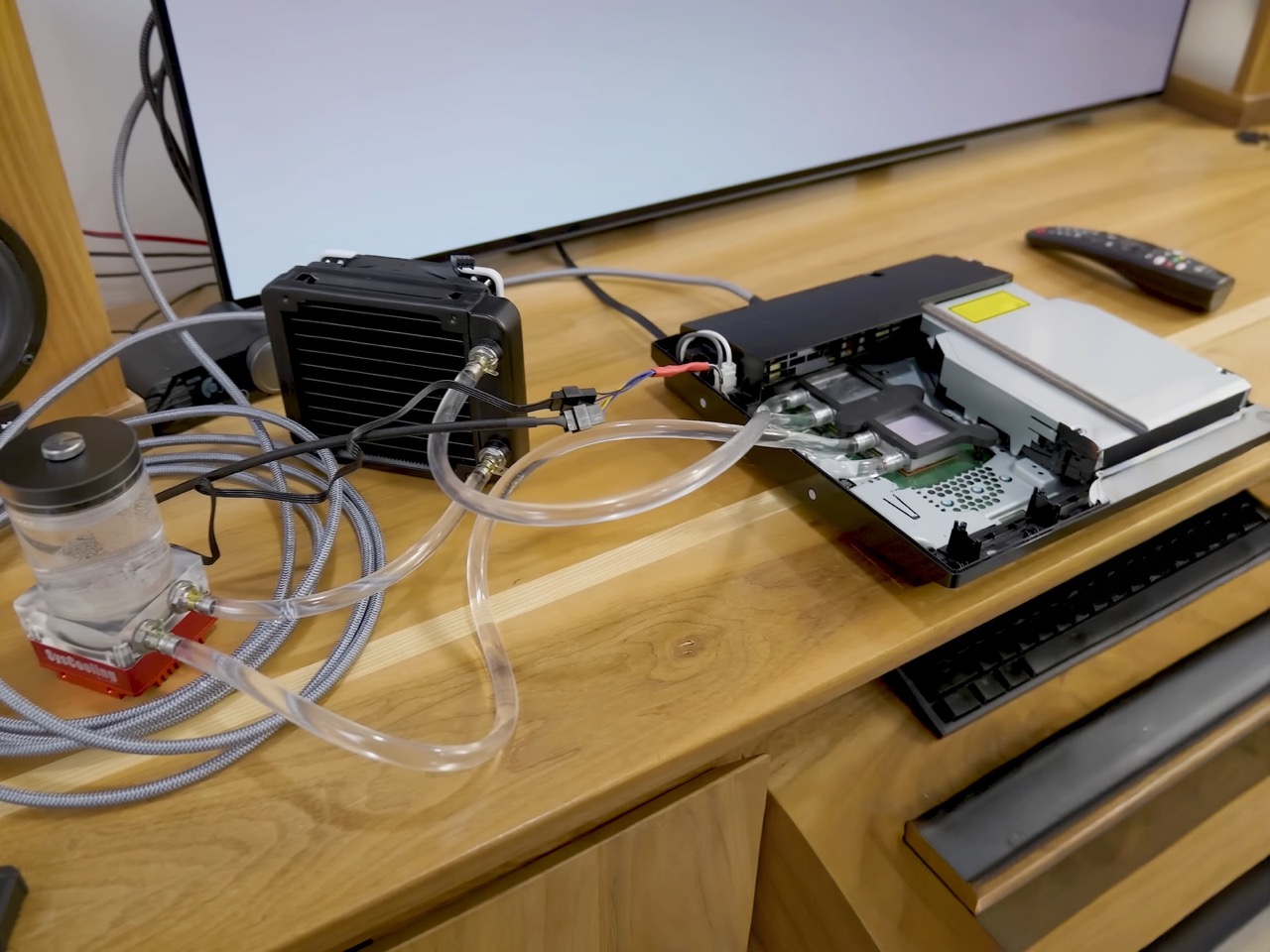

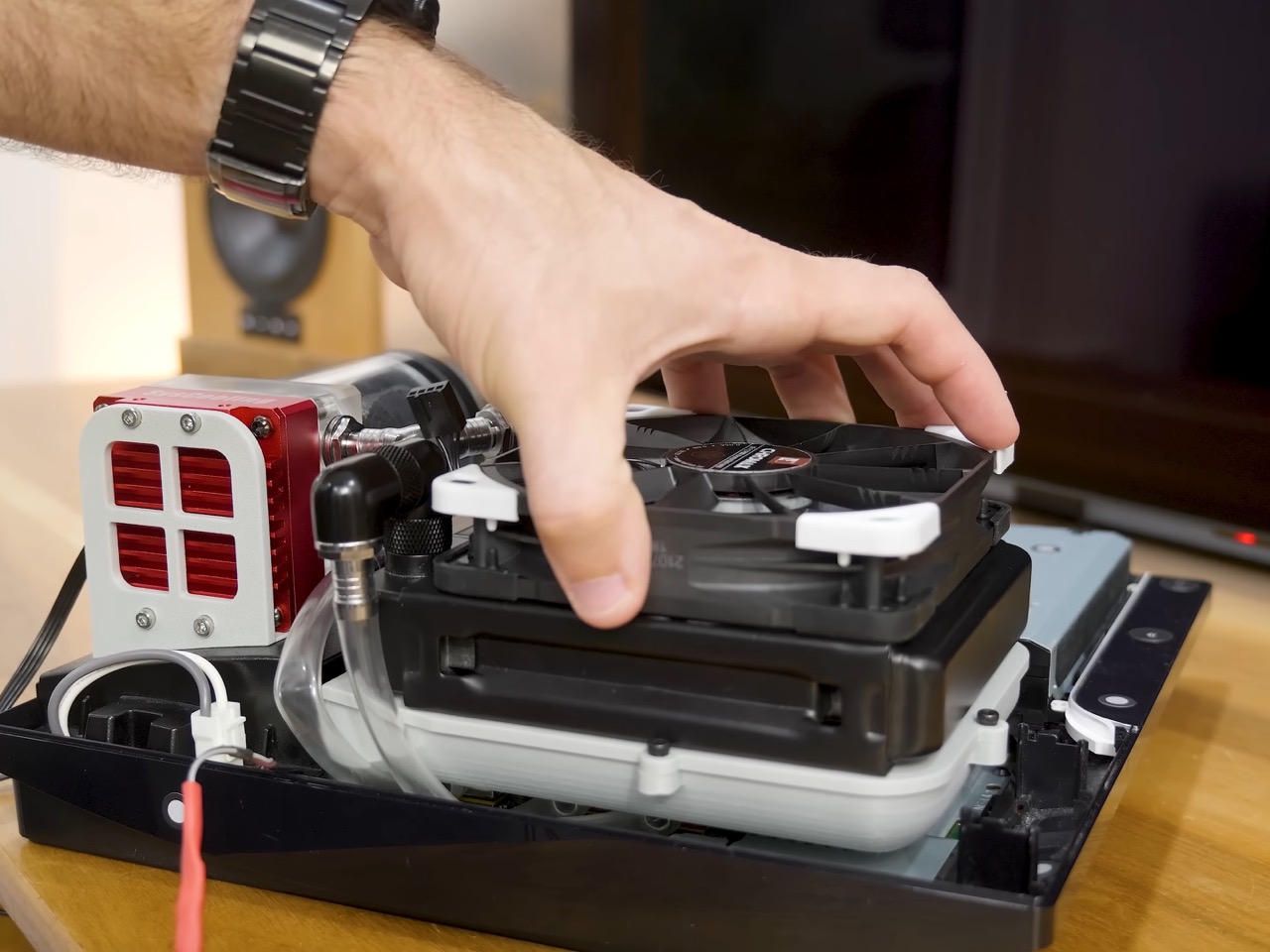

The cooling loop itself uses a 120mm radiator, Noctua fan, pump with integrated reservoir, and soft PVC tubing with elbow fittings to prevent kinking in tight spaces. Zac added copper heatsinks on top of the water blocks as backup cooling if the pump ever dies. The whole system draws power from the factory fan connector, which originally pulled over an amp by itself. He designed an airbox from glass fiber reinforced ABS that sits where the old fan used to be, maintaining airflow across the PSU and other components that depend on it. The top shell got carefully cut to accommodate everything while preserving the mounting clips, then a custom housing with honeycomb grilles and a fill port completed the package. Total print time for the housing alone hit 48 hours.
Stock temperatures hovered around 61°C for the CPU and 67°C for the GPU under load. Water cooling dropped both to 40°C, and even under maximum overclock they barely touched 43°C. That thermal headroom let Zac push the GPU to 750MHz and VRAM to 925MHz, representing 50% and 42% increases from stock respectively. He found the limits by cranking clocks until visual artifacts appeared, then backing off to stable speeds. Custom firmware that dropped right before he started the project allowed on-the-fly adjustment, which was perfect timing considering how old the PS3 actually is.
The performance gains vary wildly by title. Uncharted 2 jumped from high 30s to low 50s fps, showing near-linear scaling with the clock increase. BioShock Infinite saw a 50% uplift, sometimes approaching 60fps. Gran Turismo 6 went from mid-40s to a locked 60fps experience. Watchdogs barely improved and stayed borderline unplayable, likely CPU-bottlenecked since the Cell processor can’t be overclocked. Games with uncapped framerates benefited most, feeling dramatically smoother and more responsive.
The kicker? Temperature wasn’t the limiting factor at all. Zac admits you could probably hit similar overclocks with just fresh thermal paste and a better fan. Water cooling proved overkill for the actual thermal load. But that’s the value of this kind of project: definitively answering the “what if” question even when the answer is “you didn’t need to go that far.” It’s the same reason people water cool gaming PCs when a good air cooler would suffice. You’re not doing it because you have to. You’re doing it because you can, and because the engineering challenge itself has value.
Modern flagship phones occasionally use vapor chamber cooling, and some gaming phones have experimented with active cooling attachments. But water cooling on portable or console devices remains rare because the complexity and failure points outweigh the benefits for most users. Manufacturers have gotten incredibly good at thermal management through better chip design, smarter boost algorithms, and efficient heat spreading. The iPhone 16 Pro manages serious performance in a fanless chassis. The Steam Deck pushes respectable frame rates with a single small fan. These devices arrive so well-optimized that modification offers minimal returns, which is great for consumers but boring for tinkerers.
That’s what makes the PS3 such a compelling platform for this kind of work. It comes from an era where manufacturers left performance on the table, either due to cost constraints, reliability concerns, or simple lack of optimization. The gap between stock and possible was wide enough that determined modders could make a real difference. Zac’s build proves that gap still exists, and with modern tools like high-precision 3D scanning and multi-material printing, the barrier to custom hardware projects has dropped dramatically. You don’t need a machine shop anymore. You need a decent 3D printer, some patience, and willingness to risk bricking your hardware. The PS3 Pro Sony never made is sitting in Zac’s workspace, running games smoother than they ever did in 2006. Sometimes the best products are the ones you have to build yourself.
